Water & Waste Water

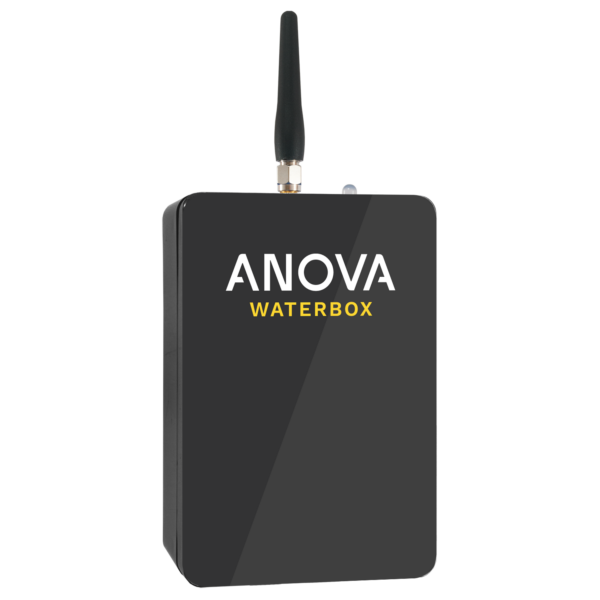

Waterbox provides remote meter and pressure readings via cellular SMS or NB-IoT (Narrow Band Internet of Things), eliminating the need for manual, on-site readings by an employee. It can be connected quickly and securely to water meters on site, and programed with customizable thresholds and alert settings. Once per day, hourly values from the last 24 hours are transmitted Datacenter, where they can then be evaluated by a water engineer at the beginning of his or her shift.

  • Waterproof IP68 housing
  • Multiple pressure and fill level input configurations
  • Provides early detection of moisture in buildings
  • Immediate warning in case of leakage and pipe breakage
  • Extra-long battery life for maximum reliability

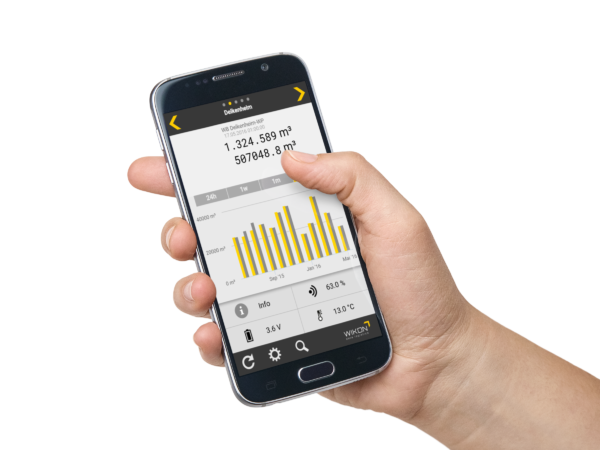

  • Purpose-built Meter smartphone app
  • Very simple installation - no specialist required

High-reliability sensors regularly check tank conditions

Measurements and alerts are communicated wirelessly to secure cloud platform

View readings, build forecasts, create reports, and manage hardware settings

Schedule efficient deliveries and respond quickly to customer needs

Dimensions 120mm x 80mm x 55mm / 4.7" x 3.1" x 2.2"
Radio 2G GSM or Cat M1/NB1 (2G GSM fallback)
Sensor & Gauge Input 6 configurations for water meter and pressure readings: · 1 analog, 1 alarm, 2 pulse meter inputs · 1 analog, 3 pulse meter inputs · 2 alarm, 2 pulse meter inputs · 4 pulse meter inputs · 2 MiniBus, 2 pulse meter inputs · 2 LightBus, 2 pulse meter inputs
Power Inputs Primary lithium battery
Battery Life 2G: Up to 7 years (daily reporting for hourly readings) NB: Up to 10 years with hourly reporting of 15 minute readings
Reporting Schedule Hourly meter reading, 15 minute analog reading, daily transmit
Material N/A
Temperature Range -20° to 50°C / -4° to 122°F
International Protection Marking IP68 dustproof and waterproof
