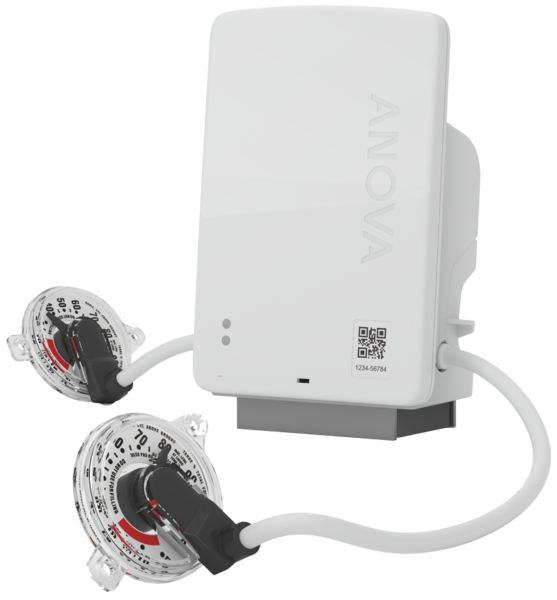

Anova Universal Tank Monitor™
Propane, Fuels & Lubricants
Available Globally
The Anova Universal Tank Monitor (Anova UTM™) is an advanced and affordable, multi-input, intrinsically safe monitor that supports a wide variety of applications. With easy installation, clip-in cables, and the ability to monitor more than one tank or input, the Anova UTM helps drive better distribution profitability and customer service. Great pricing either purchased or through Anova’s Hardware-as-a-Service (HaaS) subscription model.
- Universal SIM supports multiple cellular networks (LTE CAT-M1) and carriers
- Multiple sensor inputs supporting a range of sensors including tank level, pressure, meters, and others
- Easy installation with magnetic or 3M™ Dual Lock™ mounting options, clip-in Rochester Remote Ready® cable, on-site verification with mobile app
- Half-hourly data sampling and configurable alarms, with daily reporting
- Reliable 15-year battery life, 5-year warranty, rugged, sealed, all-weather construction, intrinsically safe, C1/D1 and ATEX compliant
- Seamless API integration with supply-chain ERP software
- Dedicated technical support with decades of industry experience in LPG, refined fuels, and other industries
Half-hour, accurate, reliable readings
Daily data via cellular wireless communications to secure cloud platform
View level and forecasts, create reports and manage devices
Plan and schedule efficient deliveries and eliminate run outs
| Dimensions | 4.72" x 3.15" x 1.97" (120mm x 80mm x 50mm) |
| Radio | Universal SIM supports cellular LTE CAT-M1 (North America), LTE CAT-M1 w/ 2G fallback (International). NB-IoT optional, GPS optional |
| Sensor & Gauge Input | Multiple universal pluggable inputs. Level, pressure, meter, cylinder change-over, digital input, or monitor multiple tanks |
| Power Inputs | Primary lithium battery |
| Battery Life | Designed for 15+ years |
| Reporting Schedule | Half-hourly data sampling and configurable alarms, with daily reporting |
| Material | Polycarbonate/Polyester |
| Temperature Range | -22°F to +140°F (-30°C to +60°C) |
| International Protection Marking | Compliance: IP66/67/x8, FCC/IC/CE, Certified Intrinsically safe C1/D1; Zone 0, UL, ATEX, IECEx |
